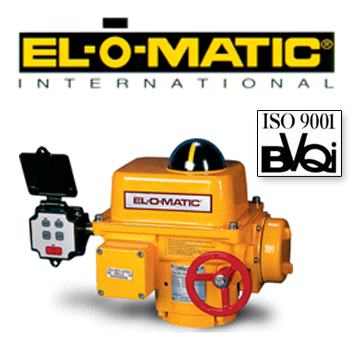

ELQ Actuators by El-O-Matic
Series ELQ electric actuators are powerful, ¼ turn units with five sizes covering the torque range from 900 in/lbs to 7100 in/lbs. They incorporate High Ration Drive (HRD) gearing which provides a compact backflash free reduction gear ideal suited for both tight positional control and long trouble free ON/OFF operation. Universal power control allows direct connection to all the usual voltages.
The aluminum alloy housing contains the motor, gear reduction and the Electronic Control Unit (ECU). Electronic control enables precise control of the actuators internal functions and a ready interface to a wide range of control options. Electronic torque control is included as a standard feature. Modular construction is used throughout and allow for a wide range of "kit" and "factory" options.
The manual override handwheel is constantly engaged, it is non-rotating and arranged so that at no time can be back driven by the motor. The handwheel is equipped with a spinner and so it can be easily removed. The mounting/drive is to ISO 5211.
- Dimensions
- Specifications
- Options

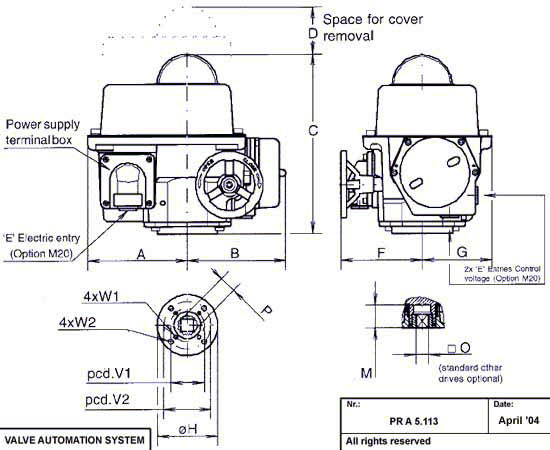

Dimensions
| DIM
in inches |
ELQ100 |
ELQ200 |
ELQ300 |
ELQ500 |
ELQ800 |
| A |
5.83 |
5.83 |
5.83 |
7.17 |
7.17 |
| B |
5.79 |
5.79 |
5.79 |
7.36 |
7.36 |
| C |
11.30 |
11.30 |
11.30 |
13.19 |
13.19 |
| D |
3.94 |
3.94 |
3.94 |
3.94 |
3.94 |
| E |
1/2"
NPT |
1/2"
NPT |
1/2"
NPT |
1/2"
NPT |
1/2"
NPT |
| F |
4.65 |
6.14 |
6.14 |
8.62 |
10.08 |
| G |
4.06 |
4.06 |
4.06 |
5.20 |
5.20 |
| H |
4.92 |
4.92 |
4.92 |
6.89 |
6.89 |
| M |
1.97 |
1.97 |
1.97 |
2.36 |
2.36 |
| O
min. |
0.748 |
0.748 |
0.866 |
1.063 |
1.471 |
| O
min. |
0.748 |
0.748 |
0.866 |
1.063 |
1.417 |
| P |
0.99 |
0.99 |
1.11 |
1.43 |
1.90 |
| V1 |
2.756 |
2.756 |
2.756 |
4.016 |
4.016 |
| V2 |
4.016 |
4.016 |
4.016 |
5.512 |
5.512 |
| W1 |
5/16-18
X .53 |
1/4-20
X .35 |
5/16"-18
X .59 |
3/8"-16
X .71 |
3/8"-16
X .71 |
| W2 |
5/16"-18 x .59 |
5/16"-18
X .59 |
3/8"-16
X .71 |
1/2"-13
X .79 |
1/2"-13
X .79 |
Specifications
|
Nominal Rotation
|
:90º-Adjustment by
limit switches at each end ±10º |
|
Enclosure
|
:IP67 / NEMA 6 (Immersion) |
|
Temperature
|
:-4º to 158°F |
|
Electrical
Entry
|
:2 X ½" NPT (Option
M20 x 1.5 or Pg 13.5) |
|
Electrical
Connection
|
:By internal terminal block. |
|
Limit Switches
|
:2 X SPDT, Micro switches. |
|
Duty
Cycle:
|
100% |
|
Torque Control
|
:Electronic |
|
Mechanical
Stops
|
:At 0° and 90°,
adjustable ±10° |
|
Voltage
Range
|
|
AC
|
- 115V, (+10%
/ -6%) 50/60 Hz |
|
|
- 230V, (+10%
/ -6%) 50/60 Hz |
|
|
- 400V, (+10%
/ -6%) 50/60 Hz |
|
DC
|
-24V (± 10%) |
|
|
Heater
|
:Standard, 10 Watts. |
|
Visual Indicator
|
:By raised dome on top cover. |
|
Finish
|
:Polyurethane paint. |
|
External Steel
Parts
|
:Stainless Steel. |
KIT OPTIONS
Position control, extra limit switches, position transmitter, local control station, speed control, etc.
FACTORY OPTIONS
IP68, Ex proof, CENELEC, FM, High temperature, Low temperature, 3 phase 460/500V, 60Hz.
| PERFORMANCE |
ELQ100
|
ELQ200
|
ELQ300
|
ELQ500
|
ELQ800
|
| TORQUE
(In. lb.) - Break |
885
|
1770
|
2655
|
4425
|
7081
|
| Speed/90°
(Sec.)
- Max Load |
10
|
14
|
18
|
22
|
36
|
| Speed/90°
(Sec.) - No Load |
6
|
8
|
13
|
17
|
28
|
|
Current
(A)
Max.
|
115VAC |
1
|
1
|
1
|
1.7
|
1.7
|
| 230VAC |
0.
|
0.5
|
0.5
|
0.9
|
0.9
|
| 400VAC |
0.3
|
0.3
|
0.3
|
0.5
|
5.1
|
| 24V
DC |
4.1
|
4.3
|
4
|
5.3
|
5.1
|
| Power
(W) |
100
|
100
|
100
|
200
|
200
|
| Weight
(lb.) |
29
|
31
|
31
|
62
|
62
|
